Автоматичний вимикач для захисту двигунів GV2-ME 13…18A 7.5kW 15kA

Код: SGV2-ME20

Прайсова ціна (за курсом НБУ)

17,90 € /шт

Виробник :

Maxge Electric Technology Co., Ltd.

Наявність на європейському складі (доставка 1 тиждень):

14 days

Вага:

0.28 kg/шт

Кількість в упаковці:

10шт

Motor Breaker GV2-ME 13…18A 15kA

The GV manual starter and protector provides manual isolation, manual motor control, and over current protection in one compact unit. Square D offers three different products that make up the GV product family - GV2M, GV2P, and GV3M. These devices are UL Listed as Manual Motor Controllers.

The GV2M is the basic starter designed to control motors with full load currents up to 32 A. The GV2P is a high performance starter that offers a high withstand rating and visible trip indication. The GV3M starter is used on large motors with full load currents up to 63 A.

The GV manual starters and protectors are also UL Listed for group installation applications. See page 5 for maximum fuse or circuit breaker ratings when used in group installations. In many European applications, the GV devices are used as circuit breakers because they meet the requirements of IEC 947-2 for circuit breakers. However, the GV starter does not meet North American circuit breaker standards such as UL or CSA.

Standard Features
The GV family offers such standard features as:

Class 10, ambient compensated overload relay
ingle phase sensitivity
Instantaneous magnetic trip
Test trip mechanism
Provision for padlocking in the OFF position
Fingersafe terminals
Captive +/- screws with screw driver guide
North American and European terminal markings

Pushbutton control
Standard power ratings of 3-phase motors 50/60 Hz category AC-3					Setting range of thermal trips	Magnetic tripping current Id ± 20 %	Thermal current Ilthe GV-2 enclosure	Reference	Weight
230V	415V	440V	500V	690V
kW	kW	kW	kW	kW	A	A	A		kg
-	-	-	-	-	0.1...0.16	1.5	0.16	GV2-M01	0.260
-	0.06	0.06	-	-	0.16...0.25	2.4	0.25	GV2-M02	0.260
0.06	0.09	0.09 0.12	-	-	0.25...0.40	5	0.40	GV2-M03	0.260
-	0.12 0.18	0.18	-	0.37	0.40...0.63	8	0.63	GV2-M04	0.260
0.09 0.12	0.25 0.37	0.25 0.37	0.37	0.55	0.63...1	13	1	GV2-M05	0.260
0.18 0.25	0.37 0.55	0.37 0.55	0.37 0.55 0.75	0.75 1.1	1...1.6	22.5	1.6	GV2-M06	0.260
0.37	0.75	0.75 1.1	1.1	1.5	1.6...2.5	33.5	2.5	GV2-M07	0.260
0.55 0.75	1.1 1.5	1.5	1.5 2.2	2.2 3	2.5...4	51	4	GV2-M08	0.260
0.55 0.75	1.1 1.5	1.5	1.5 2.2	2.2 3	2.5...4	51	4	GV2-M08	0.260
1.1	2.2	2.2 3	3	4	4...6.3	78	6.3	GV2-M10	0.260
1.5 2.2	3 4	4	4 4.5	5.5 7.5	6...10	138	9	GV2-M14	0.260
2.2 3	5.5	5.5 7.5	7.5	9 11	9...14	170	13	GV2-M16	0.260
4	7.5	7.5	9	15	13...18	223	17	GV2-M20	0.260
5.5	9 11	11	11	18.5	17...23	327	21	GV2-M21	0.260
5.5	11	11	15	22	20...25	327	21	GV2-M22	0.260
7.5	15	15	18.5	22	24...32	416	30	GV2-M32	0.260

Thermal-magnetic motor circuit-breakers GV2-M with built-in auxiliary contact block

With instantaneous auxiliary contact block:

GV2-AE1, add suffix AE1TQ to the motor circuit-breaker reference selected above.
Example : GV2-M01 becomes GV2-M01AE1TQ.
GV2-AE11, add suffix AE11TQ to the motor circuit-breaker reference selected above.
Example : GV2-M01 becomes GV2-M01AE11TQ.
GV2-AN11, add suffix AN11TQ to the motor circuit-breaker reference selected above.
Example : GV2-M01 becomes GV2-M01AN11TQ.
These thermal-magnetic motor circuit-breakers with built-in contact block are sold in lots of 20 parts in a single pack.

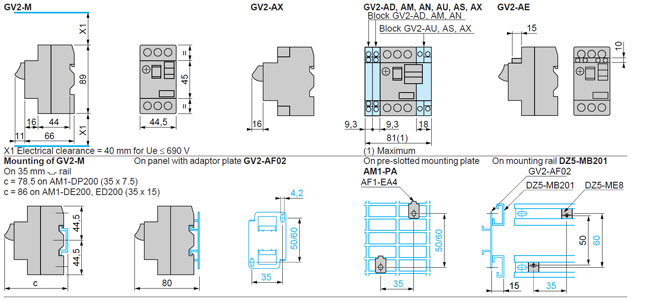

Dimensions:
