Product index > Корпуси, шафи та компоненти > Захист > Автоматичні вимикачі, MaxGE

Зображення носить ознайомчий зміст

MCB 1C 50A 6kA

Код: EP06K-1C-50

Click here and ask for a special price!

2,08 € /шт

Виробник :

Maxge Electric Technology Co., Ltd.

Наявність на європейському складі (доставка 1 тиждень):

14 days

Вага:

0.1083 kg/шт

об'єм:

0.0002 m3/шт

Кількість в упаковці:

12шт

MCB 1C 50A 6kA

Name: MCB 1C
Brand: Maxge Electric Technology Co., Ltd.
SKU: EP06K-1C-50
Price: 2.08 EUR
Availability: InStock

Functions:

Protection of the electrical circuits from overload or short circuits of the outer circuit

It can be used as a device for commutation and control of electrical circuits

In combination with auxiliary devices it allows remote control,
commutation or indication of the protected circuit

For mounting in industrial buildings with high contamination level of the electric systems

For mounting at a distance from the transformer post from 150 to 850 m

Allows protection of consumers generating short circuit currents up to 6000 A

Technical data:

Mounting:

Standard	Confirming to IEC/EN60898
Rated voltage:	230/400V; 50/60Hz
Breaking capacity (cycle O-CO) in accordance with standard:	EN 60 898-1: 6000A
Rated breaking capacity:	Ics= 75% Icu
Isolating voltage:	≥2000V
Electrical wear resistance (number of cycles):	8000
Mechanical (number of cycles):	50000
Class of current limiting:	3
IP code:	IP>20

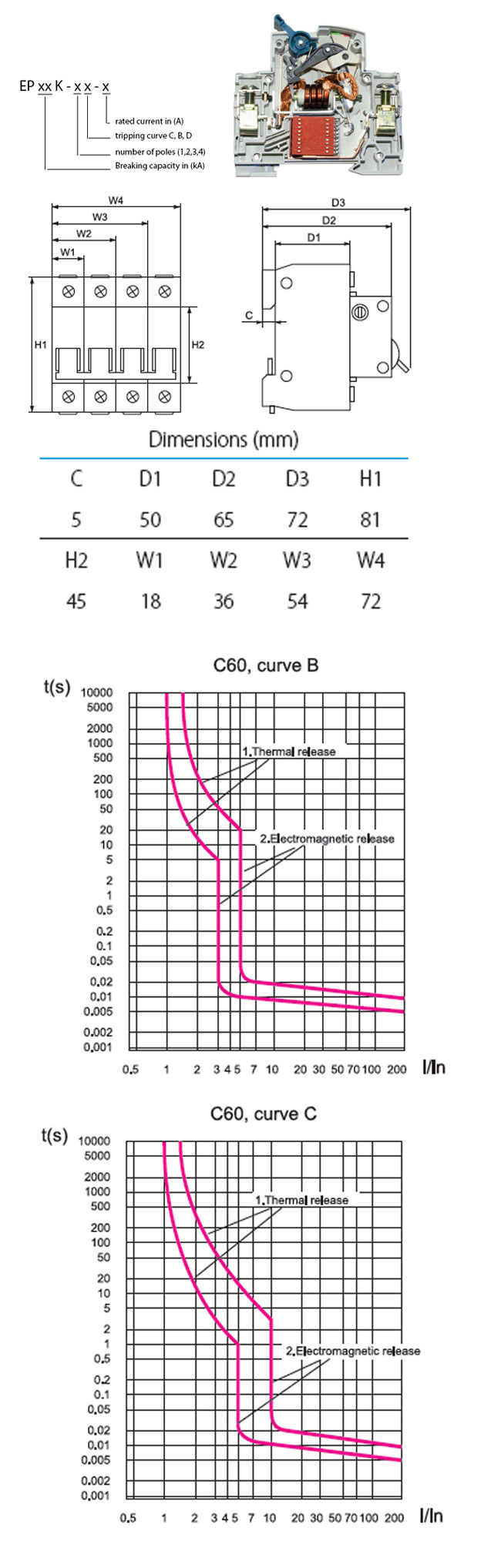

Tripping curve:	B the maximum current release breaks between 3 and 5 In; used to protect long circuits and generators C the maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers
Joining terminal:	Combined screw clamp made of 1.5 cold extruded Q235-A material with additional coating
Plastic box	not keeping the burning material nylon PA66, UV rays wear resistance
Status indicator:
Box permitivity strength:	>18MV/m
Abnormal heating wear resistance and fire of the outer parts:	960°C / 3s
Heat resistance of internal non-electrical components:	850°? / 10 s
Maximum current release containing:	copper coil - composition: pure copper T2 type composition: pure copper T2 type welding effort: <150 000 N/mm bimetal plate composition: 5J158 to TB180 depending on the current thickness: 0.6mm (up to 40A) and 0.8mm (up to 63A) magnetic core composition: coldly drawplated metal wire (1Gr18Ni9) thickness: 1.15 to 2.24μm drawing effort: from 200 to 400N/mm contact head of the movable contact composition: silver graphite CAg(5) dimension 3x3x0.8 (up to 40A) and 4x4x0.8 (up to 63A) static contact composition: pure copper T2Y2 composition of the contact head: silver graphite CAg(5)
Power supply (conducting):	power supply busbar 1P63, 2P63, 3P63 rigid conductors up to 25 mm flexible conductors up to 16 mm
Tightening moment:	1.33Nm
Standard	vertical DIN-rail for mounting in housing or industrial environment without serious interference ambient temperature: -5°C to + 40°C±2° C
