Зображення носить ознайомчий зміст
|
Вимірювання Трансформатор 1PH 5 /../ 50 AAC, вихід 4-20 мА, Carlo Gavazzi Код:
E83-2050
Прайсова ціна (за курсом НБУ)
Виробник
:
|
Наявність на європейському складі (доставка 1 тиждень):
14 days
|
Вага:
0.07 kg/шт
|
об'єм:
0.0001 m3/шт
|
Кількість в упаковці:
10шт
|
|
|
|

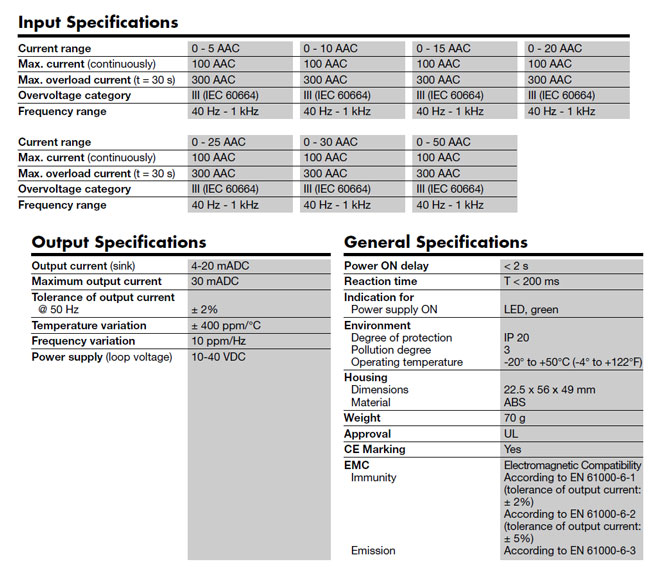

Measurement Transformer 1PH 5/.../50AAC, output 4-20mA, Carlo Gavazzi
- Manufacturer: Carlo Gavazzi
- Code: E83-2050
- 7 knob selected current ranges: 0-5 AAC, 0-10 AAC, 0-15 AAC, 0-20 AAC, 0-25AAC, 0-30AAC, 0-50AAC
- Max. current (continuously): 100AAC
- Max. overload current (t = 30 s): 300AAC
- Frequency range: 40Hz - 1kHz
- Power supply (loop voltage): 10-40VDC
- Output current (sink): 4-20mA DC
- Maximum output current: 30mA DC
- Tolerance of output current @ 50 Hz: +/-2%
- Operating temperature: -20° to +50°C
- Degree of protection: IP20
- Material: ABS
- Diameter of hole: 12mm
- Width: only 22,5mm,
- Dimensions: 22,5 x 56 x 49mm
|
Small AC current metering transformer with 7 knob selectable ranges. Output from the transformer is 4-20 mADC in accordance with IEC 60381-1. Can be used with relays DIB01, PIB01, DIC01 or PIC01 or directly connected to a PLC. Power supply ON is indicated by a green LED. 12 mm hole for isolated current carrying wire makes it suitable for most applications. For mounting on DINrail or directly on surface by screws.
|
|
|
File description
|
File type
|
Download link
|
|
|
|
|
|
Product data sheet
|
PDF
|
Download link
|
|
|
|
|
|
