Зображення носить ознайомчий зміст
|
Світлодіодний модуль з безінерційним діодом RIM-I 2 6..24VDC GN, Weidmüller Код:
8869600000
Виробник
:
|
Наявність на європейському складі (доставка 1 тиждень):
14 days
|
Вага:
2 g/шт
|
об'єм:
0 m3/шт
|
Кількість в упаковці:
10шт
|
|
|
|
LED w. freewheel diode RIM-I 2 6...24VDC GN, Weidmüller, green
 |
|
Pluggable protective modules for the RIDERSERIES RCI /RCM relay base, with optional protective functions.
:
- With either green or red LED
- With free-wheel diode
- For DC supply voltage
|

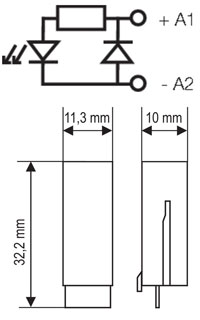

Technical data:
|
|
Dimensions and weights: |
Width: 11.3 mm
Height: 10 mm
Depth: 32.2 mm
Net weight: 2 g |
Temperatures:
|
|
Humidity: |
40 °C / 93 % rel. humidity, no condensation |
|
Operating temperature: |
-40°C...+70°C |
|
Storage temperature: |
-40°C...+70°C |
Product information:
|
|
Descriptive text accessories: |
Can only be plugged into an SRC-I base |
Input:
|
|
Rated control voltage: |
6…24 V DC |
|
Protective circuit: |
Integrated free-wheel diode |
|
Status indicator: |
Green LED |
Connection data:
|
|
Wire connection method: |
Plug-in connection |
Classifications:
|
|
ETIM 3.0: |
EC000683 |
|
UNSPSC: |
32-11-15-03 |
|
eClass 5.1: |
27-11-06-35 |
|
eClass 6.2: |
27-11-06-35 |
|
Class 7.1: |
27-11-06-35 |
|
|
|
