Колодка FS 4CO, 10A 300V, DRM relays, Weidmüller Код:
7760056107
Прайсова ціна (за курсом НБУ)
29,00 €
/pk
Package 10шт, unit price
2.9EUR/шт
Виробник
:
|
Наявність на європейському складі (доставка 1 тиждень):
21 days
|
Вага:
0.0485 kg/шт
|
об'єм:
0.0001 m3/шт
|
|
|
|
|
Relay socket FS 4CO for DRM (screw) Weidmüller
 |
Accessories for D-SERIES relays include:
- Relay bases
- LED / Protective modules
- Metal retaining clips
|
|
![]()
| |
Technical data:
|

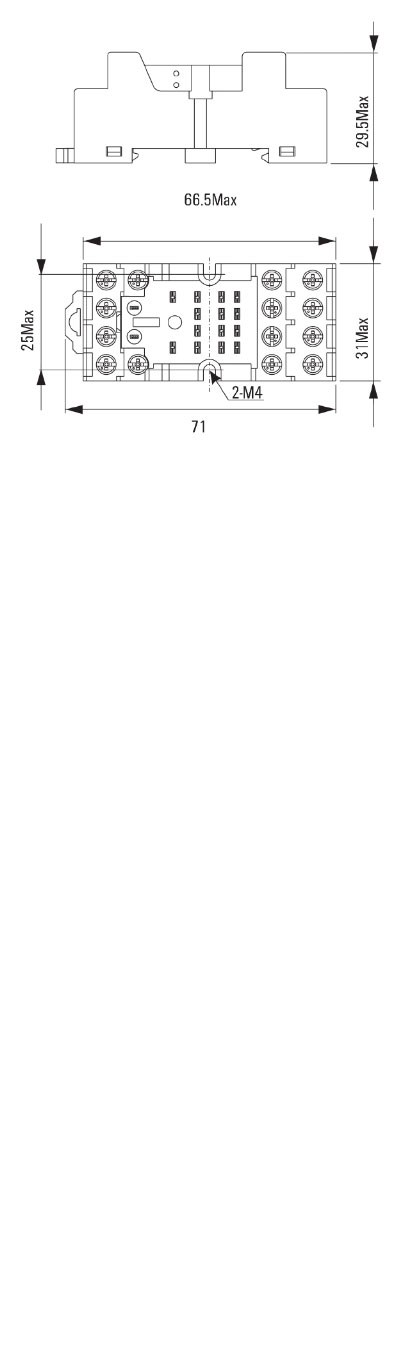

| Dimensions and weights: |
Width: 31 mm
Height: 71 mm
Depth: 29.5 mm
Weight: 43 g
Net weight: 48.1 g |
Temperatures:
|
| Storage temperature: |
-40°C...+70°C |
| Operating temperature: |
-40°C...+70°C |
Output:
|
| Max. switching voltage, AC: |
300 V |
| Continuous current: |
10 A |
General data:
|
| Wire connection method: |
Screw connection |
| Weight: |
43 g |
| Wire cross-section, solid, max.: |
2.5 mm2 |
Connection data:
|
| Clamping range, rated connection, max.: |
2.5 mm2 |
| Clamping range, rated connection, min.: |
0.5 mm2 |
| Conductor cross-section, flexible, AEH(DIN 46228-1), max.: |
2.5 mm2 |
| Conductor cross-section, flexible, AEH(DIN 46228-1), min.: |
0.5 mm2 |
| Cross-section for connected conductor,finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.: |
0.5 mm2 |
| Tightening torque, max.: |
0.8 Nm |
| Tightening torque, min.: |
0.5 Nm |
| Wire connection cross section, finely stranded, two clampable wires, max.: |
2.5 mm2 |
| Wire connection cross section, finely stranded, two clampable wires, min.: |
0.5 mm2 |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.: |
1.5 mm2 |
| Wire connection cross-section, finely stranded, min.: |
0.5 mm2 |
| Wire connection method: |
screw connection |
| Wire cross-section, finely stranded, two clampable wires, max.: |
2.5 mm2 |
| Wire cross-section, solid, max.: |
2.5 mm2 |
| Wire cross-section, solid, min.: |
0.5 mm2 |
Classifications:
|
| eClass 6.2: |
27-37-16-01 |
|
|
|
