Аналоговий таймер 600XU, 13 Modes, 0.1s..3h, 1SPDT (1co), 5A 250VAC, cv 12/20..240V, TS35, Selec Код:
600XU-CU
Прайсова ціна (за курсом НБУ)
Виробник
:
|
Наявність на європейському складі (доставка 1 тиждень):
14 days
|
Вага:
0.064 kg/шт
|
|
|
|
|
|
Analog Timer, 13 Operation Modes, 10 Time Ranges, 1SPDT, 20-240V, DIN 17.5mm
 |
Features:
- 13 Functions
- 10 Time Ranges
- Front knobs for Time Range, Time Scale & Mode Setting
- Slim, Space Saving Design
- DIN Rail Mount

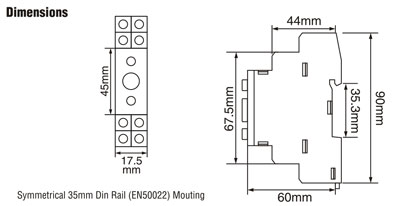

- Size: DIN 17.5mm
|
|
![]()
| |
Input Specifications:
|
| Accuracy: |
Setting: ±5% of F.S. (F.S. = Full Scale)
Repeat: ±0.5% (F.S. = Full Scale) |
| Reset: |
Reset time < 100msec |
Output Spetcifications:
|
| Output Contact: |
SPDT (1 C/O) |
| Contact Rating: |
NO/5A, NC/3A@250V AC |
Functional Spetcifications:
|
| Modes: |
On delay (A)
Interval (B)
Cyclic equal OFF first (C)
Pulse output, 500ms fixed (D)
Delay on break (E)
Delay on make /
Delay on break (F)
Interval after break (H)
Single shot (I)
Retriggerable Single shot (J)
Latching relay
Delay with Totalise (Ai)
Interval with totalise (Bi) |
| Time Ranges: |
0.1 - 1 sec, 0.3 - 3 sec, 1 - 10 sec, 3-30 sec
0.1 - 1 min, 0.3 - 3 min, 1 - 10 min, 3 - 30 min
0.1 - 1 hr, 0.3 - 3 hr |
Supply Voltage:
|
| Supply Voltage: |
20-240V AC
12-24V DC
AC : (50:50Hz) |
| Power Consumption: |
3.2 VA |
Enviromental Specifications:
|
| Temperature: |
Operating: 0 to 50ºC
(32 to 122ºF)
Storage: -20 to 75ºC
(-4 to 167ºF) |
| Humidity (non-condensing): |
95% RH |
| Weight: |
64g |
| Protection Level: |
IP40 for Casing
IP20 for terminals |
|
|
|
|
|
|
|
|
