Universal terminal blocks

Application

Distribution terminal block for mounting on DIN rails or mounting plates, for example in installation distributors and meter cabinets according to VDE0603.

Standards

VDE0611-1:2010-03; EN60947-7-1:2009 low-voltage switchgear and controlgear, terminal blocks for copper conductors.

Materials

Terminal body aluminium, tinned.

Clamping screws steel, galvanized.

Insulating housing plastic PA66, impact-resistant, flame-retardant.

Continuous operating temperature 120°C.

Electrical

Rated insulation voltage 690VAC/DC, overvoltage category IV (Uimp=8kV), pollution degree3.

Rated insulation voltage 1000VAC/1500VDC, overvoltage category II (Uimp=8kV), pollution degree2.

Maximum operating temperature 70°C.

Mounting and protection

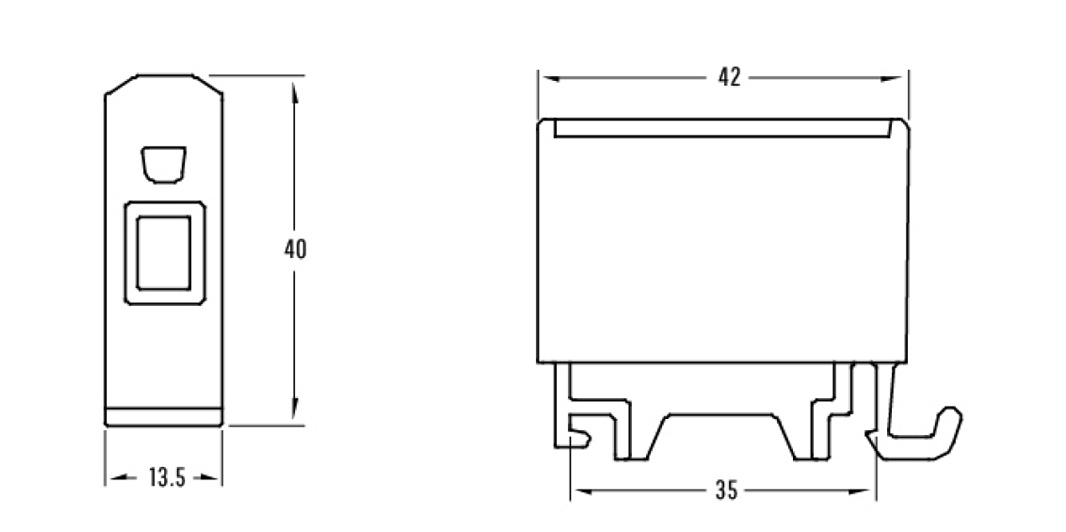

DIN rail TS35 according to EN50022/EN60715 up to UK150 or screw mounting M5.

Touch protection IP20, finger-safe.

Safety rounded corners.

Environment

RoHS compliant.
