Зображення носить ознайомчий зміст
|
Модульний трансформатор PSS, 30VA 230V/12V, TS35, Breve Код:
16012-9983
Виробник
:
|
Наявність на європейському складі (доставка 1 тиждень):
14 days
|
Вага:
0.9 kg/шт
|
|
|
|
|
|
ENCASED TRANSFORMERS FOR T-35 BUS
Type PSS30
Encased protection transformers designed mainly for fitting
into devices using T-35 bus. Elegant casing, featuring spring
bracket significantly facilitates and speeds up attaching.
The transformers are made with Class II insulation and protection grade IP30.
Maximum ambient temperature 40°C, thermal class of insulation B (130°C).
Manufactured in compliance with EN 61558-2-4 and EN 61558-2-6.
| Rated power |
:10 - 100 VA |
| Rated voltage PRI |
:110 - 500 V 50/60 Hz |
| Rated voltage SEC |
:6 - 250 V |
|
|

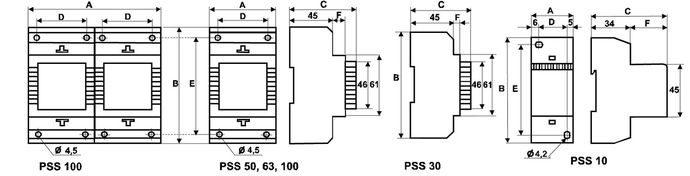

| Type |
Power (VA) |
A |
B |
C |
D |
E |
Mounting |
Weight (kg) |
| PSS 10 |
10 |
35 |
92 |
66 |
24 |
79 |
M4 |
0,32 |
| PSS 20 |
20 |
53 |
110 |
66 |
40 |
88 |
M4 |
0,54 |
| PSS 30 |
30 |
72 |
110 |
63 |
52 |
98 |
M4 |
1,00 |
| PSS 50 |
50 |
72 |
110 |
72 |
52 |
98 |
M4 |
1,10 |
| PSS 60 |
60 |
72 |
110 |
72 |
52 |
98 |
M4 |
1,10 |
| PSS 63 |
63 |
72 |
110 |
72 |
52 |
98 |
M4 |
1,10 |
| PSS 100 |
100 |
144 |
110 |
72 |
52 |
98 |
M4 |
2,20 |
|
|
