Кабель-канал перфорований HVDRF 80Wx60H, A6/4, 2м, сірий

Код: 011701670

Click here and ask for a special price!

10,60 € /pc
Package 2m, unit price 5.3EUR/m

Наявність на європейському складі (доставка 1 тиждень):

14 days

Вага:

0.825 kg/m

об'єм:

0.0029 m3/m

Кількість в упаковці:

36m

Wiring Duct HVDRF 80x60, slotted wall A6/4 and smooth lid, 2m, grey

Wire management solution.
The selection and design of Trinity Touch wiring ducts is to meet the maximum wire capacity needs and space constraint of the smallest wall mounted panels to the largest integrated systems.
All the wiring ducts are manufactured from high impact, self extinguish, wrap proof rigid PVC with lead free material. PVC material carries UL 94 flammability rating of V0 for excellent flame retardancy, continuous use temperature 50ºC (122ºF).
Wiring ducts includes solid and slotted styles, narrow slots/finger design provides more slot to closed fit the spacing of high density terminal block and other hardware.
All the wiring ducts are available in different sizes. Premium-Duct comes in standard colour of grey in 1 meter and 2 meter lengths. Other colours of wiring ducts are also available on request for minimum volume requirements.

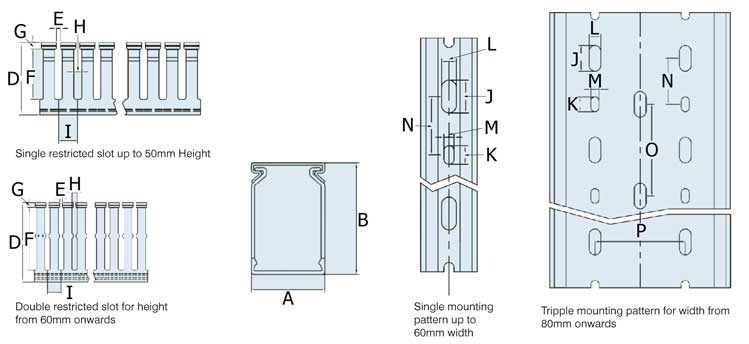

Juhtmekanali mõõdud

Nominal Duct Size (mm)		Dimensions (mm)
A	B	T*	D	E	F	G	H	I	J	K	L	M	N	O	P
25	25	1.6	22.2	2	10.8	3.40	4	10	14	8	6.5	4.5	25	-	-
25	40	1.6	37.2	2	25.80	3.40	4	10	14	8	6.5	4.5	25	-	-
25	45	1.6	42.2	2	30.80	3.40	4	10	14	8	6.5	4.5	25	-	-
25	60	1.9	57.5	2	45.55	3.40	4	10	14	8	6.5	4.5	25	-	-
25	80	2.2	77.8	2	54.90	3.50	4	10	14	8	6.5	4.5	25	-	-
25	100	2.1	97.8	2	83.60	3.50	4	10	14	8	6.5	4.5	25	-	-
30	80	2.2	77.8	2	54.90	3.50	4	10	14	8	6.5	4.5	25	-	-
40	40	1.6	37.2	2	25.80	3.40	4	10	14	8	6.5	4.5	25	-	-
40	60	1.9	57.5	2	45.55	3.40	4	10	14	8	6.5	4.5	25	-	-
40	80	2.2	77.8	2	54.90	3.40	4	10	14	8	6.5	4.5	25	-	-
40	100	2.4	97.8	2	83.60	3.50	4	10	14	8	6.5	4.5	25	-	-
45	45	1.6	42.2	2	30.80	3.40	4	10	14	8	6.5	4.5	25	-	-
60	40	1.6	37.2	2	25.80	3.40	4	10	14	8	6.5	4.5	25	-	-
60	60	1.9	57.2	2	45.55	3.40	4	10	14	8	6.5	4.5	25	-	-
60	80	2.2	77.8	2	54.90	3.50	4	10	14	8	6.5	4.5	25	-	-
60	100	2.4	97.8	2	83.60	3.50	4	10	14	8	6.5	4.5	25	-	-
80	40	1.6	37.2	2	25.80	3.40	4	10	14	8	6.5	4.5	25	50	50
80	60	1.9	57.5	2	45.55	3.40	4	10	14	8	6.5	4.5	25	50	50
80	80	2.3	77.8	2	54.90	3.50	4	10	14	8	6.5	4.5	25	50	50
80	100	2.5	97.8	2	83.60	3.50	4	10	14	8	6.5	4.5	25	50	50
100	60	1.9	57.5	2	45.55	3.40	4	10	14	8	6.5	4.5	25	50	50
100	100	2.5	97.8	2	83.60	3.40	4	10	14	8	6.5	4.5	25	50	50

*T - thickness

Formula for Calculating fill Capacity

Number of Wires=

Duct W x H

1.75 x (Wire O.D.)²/2

Typical raw material properties of Wiring Duct

Property	Units	ASTM Test	PVC
Specific Gravity		D792	1.43
IZOD Impact Strength	Kg.cm/cm	D256	7.5
Flexural Strength	Psi	D790	10 900
Flexural Module	Psi	D790	382 000
Tensile Strength	Psi	D638	5 500
Compressive Strength	Psi	D695	8 600
Water Absorption	24Hrs-%	D570	0.1
Hardness	Shore D	D785	78D
Dielectric Strength 50Hz, 25°C,s/t	Kv/mm	D149	36
Volume Resistivity	Ohm-cm	D257	6.1x10
Heat Deflecting F @ 264 psi	F	D648	Up to 158 (70°C)
UL 94 - Flammability			V0 RoHS

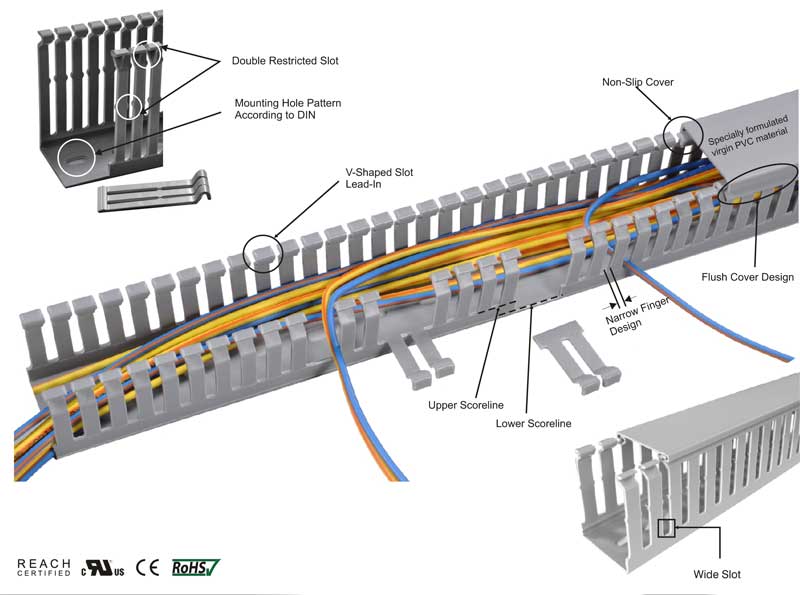

Juhtmekanal illustratiiv
