Dear customer
We present you the new automation products to help you better manage automated processes. Take a look following newsletter!
EZ-Mag - Magnetic Flow Meter

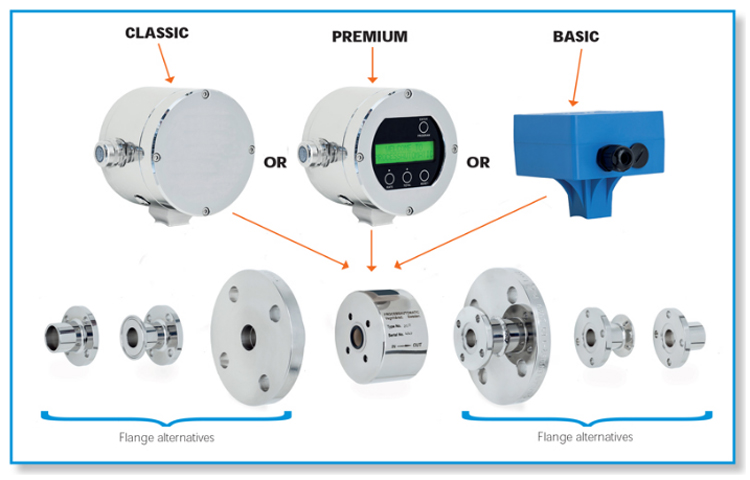

The highly accurate, robust and compact EZ-Mag is a customer oriented Magnetic Flow Meter. It is capable of simultaneous temperature and flow monitoring. The design flexibility allows for a wide range of applications including food & beverage, wastewater, pharmaceutical, marine, municipal water & water management, batching ...etc. Whether installed in-house or on a vehicle, you can be assured that it is up to the task. The all new & patented design has a solid interior; allowing for industrial flanged adapters to be bolted directly onto the flow tube body - providing unmatched flexibility.
- Simultaneous Flow & Temperature Monitoring
- Highly Accurate
- Variable Design
- Optional End-Connections
- User Friendly
- Durable & Robust
- Suitability & Adaptability
The Pulse Output: Provides a measure of the volume passing through the flow tube. Each pulse represents a pre-set quantity; i.e. 1 pulse for every litre.
The Current Output: Can be set to 4-20mA or 0-20mA. It is directly proportional to the volumetric flow rate. It can also be used as an output for the optional temperature sensor.
The multifunctional Output: Offers 3 alternative indicators. It can be used as a second pulse output, as a bidirectional flow indicator - showing the flow direction, or as a high/low alarm indicator for EZ-Monitor.

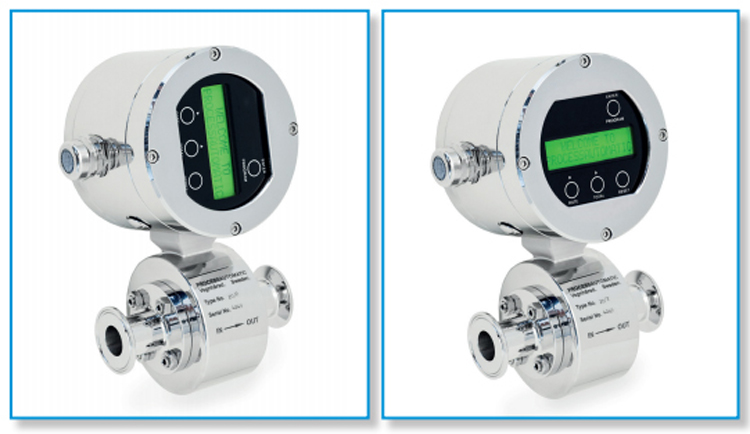

The Voltage Output: can be used to power the other outputs or external circuits. As shown, the digital display can be mounted at 0, 90, 180 or 270 degrees. Also, though not shown, the entire enclosure can also be mounted at optional 90 degree angles. This allows the EZ-Mag LCD to be clearly visible, regardless of the installed position of the flow tube.
|
|
